前言
目前poi-tl只提供了word表格的单行模板渲染能力，但是在实际的开发中，业务需求涉及多行，这里就需要自己编写一个渲染策略。
正文
因为poi-tl使用指定策略的方式为通过ConfigureBuilder的bind方式指定处理某个参数的变量，比如这样：
1
2
| ConfigureBuilder builder = Configure.builder();
builder.bind("reports", new MultipleRowTableRenderPolicy());
|
所以第一步需要获取reports所在的行位置。
1
2
3
4
| protected int getRowIndex(XWPFTableRow row) {
List<XWPFTableRow> rows = row.getTable().getRows();
return rows.indexOf(row);
}
|
由于是多行渲染，因此需要知道定义的模板行数。
1
2
3
4
5
6
7
8
9
10
11
12
| protected int getMultipleRowNum(XWPFTemplate template) throws CloneNotSupportedException {
TemplateResolver resolver = new TemplateResolver(template.getConfig().copy(multiplePrefix, multipleSuffix));
List<MetaTemplate> metaTemplates = resolver.resolveDocument(template.getXWPFDocument());
if (!metaTemplates.isEmpty()) {
RunTemplate run = cast2runTemplate(metaTemplates.get(0));
String tagName = run.getTagName();
int num = Integer.parseInt(tagName);
run.getRun().setText("", 0);
return num < 1 ? DEFAULT_MULTIPLE_ROW_NUM : num;
}
return DEFAULT_MULTIPLE_ROW_NUM;
}
|
拿到基本信息后就可以遍历数据，进而遍历渲染表格了。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| run.setText("", 0);
TemplateResolver resolver = new TemplateResolver(template.getConfig().copy(prefix, suffix));
// 获取模板所在的起始行
int position = getRowIndex(tagCell.getTableRow());
List<XWPFTableRow> tempRows = getAllTemplateRow(table, template, position);
// 保存第行模板，以便在后续操作中获取光标
final XWPFTableRow firstTempRow = tempRows.get(0);
Iterator<?> dataIt = ((Iterable<?>) data).iterator();
boolean hasNextData = dataIt.hasNext();
int index = 0;
while (hasNextData) {
Object dt = dataIt.next();
hasNextData = dataIt.hasNext();
Iterator<XWPFTableRow> rowTempIt = tempRows.iterator();
boolean hasNextTempRow = rowTempIt.hasNext();
while (hasNextTempRow) {
XWPFTableRow tempRow = rowTempIt.next();
hasNextTempRow = rowTempIt.hasNext();
if (!table.addRow(tempRow, position)) {
throw new RenderException("创建新的表格行失败");
}
// 光标操作，移动光标到目标行，以便后续的模板渲染
XmlCursor newCursor = firstTempRow.getCtRow().newCursor();
newCursor.toPrevSibling();
XmlObject object = newCursor.getObject();
XWPFTableRow newRow = new XWPFTableRow((CTRow) object, table);
newRow.getCtRow().set(object);
setTableRow(table, newRow, position);
List<XWPFTableCell> cells = newRow.getTableCells();
RenderDataCompute dataCompute = template.getConfig().getRenderDataComputeFactory()
.newCompute(EnvModel.of(dt, EnvIterator.makeEnv(index++, hasNextData || hasNextTempRow)));
cells.forEach(tableCell -> {
List<MetaTemplate> metaTemplates = resolver.resolveBodyElements(tableCell.getBodyElements());
new DocumentProcessor(template, resolver, dataCompute).process(metaTemplates);
});
++position;
}
}
removeTableRow(table, position, tempRows.size());
|
值得一提就是光标的移动操作，相当于操作所有行的确定。取模板的第一行作为基位置，然后每次插入的渲染的行后，就把光标向上移一行，进而指向刚插入的行，最后渲染即可。
EnvIterator.makeEnv只是为了生成一些遍历现在时参数，可以用在渲染参数的表达式中，具体可以参数poi-tl的文档。
附上removeTableRow函数的实现，注意：使用下标移出行时，下标千万不要作自增操作。
1
2
3
4
5
| protected void removeTableRow(XWPFTable table, int startIndex, int size) {
for (int i = 0; i < size; ++i) {
table.removeRow(startIndex);
}
}
|
测试

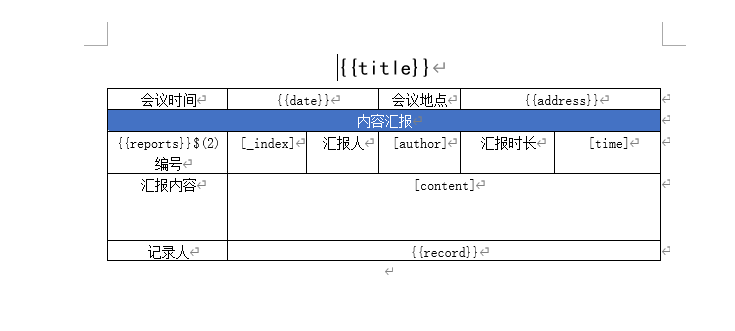

模板
代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
| public class MultipleRowTableRenderPolicyTest {
public static void main(String[] args) throws IOException {
Map<String, Object> params = new HashMap<>();
params.put("title", "某某某会议");
params.put("date", new Date());
params.put("address", "某某会议室");
List<Report> reports = new ArrayList<>();
reports.add(new Report("王五", new Date(), "汇报内容1"));
reports.add(new Report("张三", new Date(), "汇报内容2"));
reports.add(new Report("李四", new Date(), "汇报内容3"));
params.put("reports", reports);
ConfigureBuilder builder = Configure.builder();
builder.bind("reports", new MultipleRowTableRenderPolicy());
XWPFTemplate xt = XWPFTemplate
.compile("src/test/resources/template/render-multiple-row.docx", builder.build())
.render(params);
xt.writeToFile("render-multiple-row.docx");
}
static class Report {
private String author;
private Date time;
private String content;
public Report(String author, Date time, String content) {
this.author = author;
this.time = time;
this.content = content;
}
public String getAuthor() {
return author;
}
public void setAuthor(String author) {
this.author = author;
}
public Date getTime() {
return time;
}
public void setTime(Date time) {
this.time = time;
}
public String getContent() {
return content;
}
public void setContent(String content) {
this.content = content;
}
}
}
|
结语
相关代码已经上传至github，地址：GitHub - c-poet/poi-tl-ext: poi-tl扩展
